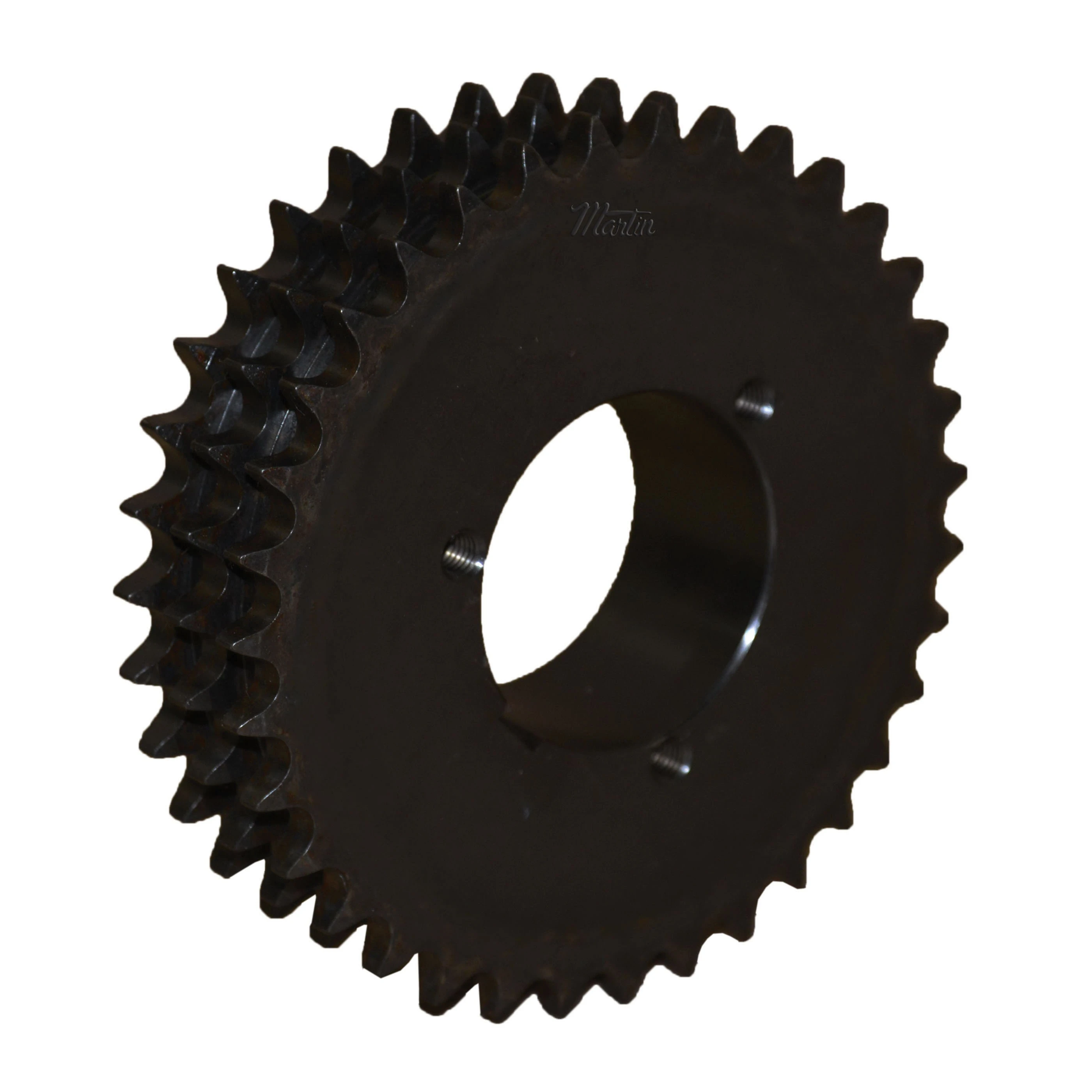

MARTIN SPROCKET E40Q30H Sprocket, MST, 40 Chain, 30 Teeth, 4.783 Inch Pitch Dia., 5.057 Inch O.D., Steel
Get it by Tuesday, Jun 17
€352.25 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 3 |
| Number Of Teeth | 30 |
| Outside Dia. | 5.057" |
| Pitch Dia. | 4.7834" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 5.057" |
| Storage Dimension Width | 5.057" |
| Weight | 4.46 lbs. |
| Ship weight (kg) | 2.01 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 12.85 |
| Ship width (cm) | 12.85 |
