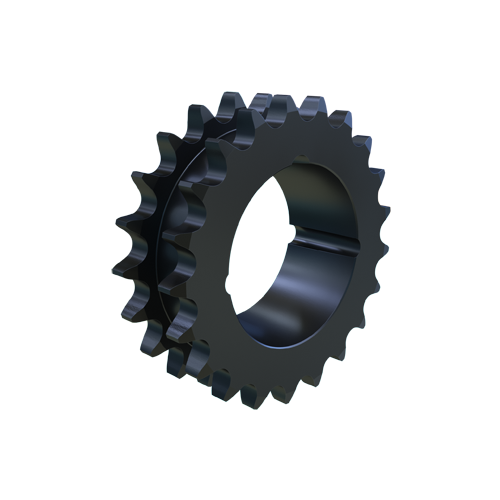

MARTIN SPROCKET DS80ATB21H Sprocket, Taper, 80 Chain, 21 Teeth, 6.710 Inch Pitch Dia., 7.235 Inch O.D., Steel
Get it by Tuesday, Jun 17
€578.47 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
Item | Roller Chain Sprocket |
Bore Type | Bushed Bore |
Bushing Part Number | 3020 |
Chain Number | 80 |
Chain Pitch | 1" |
Construction | Solid |
For Chain Number | 80 |
For Chain Pitch | 1" |
Hardened Teeth | 1 |
Hub Configuration | A |
Individually Packaged | No |
Length Through Bore | 2.188" |
Material | Steel |
Max. Bore Size | 3" |
Min. Bore Size | 15/16" |
Number Of Chain Rows | 2 |
Number Of Teeth | 21 |
Outside Dia. | 7.235" |
Pitch Dia. | 6.7095" |
Single Strand Tooth Thickness | 0.575" |
Storage Dimension Height | 2 3/16" |
Storage Dimension Length | 7.235" |
Storage Dimension Width | 7.235" |
Weight | 9.6 lbs. |
Ship weight (kg) | 4.32 |
Ship height (cm) | 5.56 |
Ship length (cm) | 18.39 |
Ship width (cm) | 18.39 |
Product | Model | Price | |
---|---|---|---|
![]() |
DS80ATB17H | €408.00 | |
![]() |
DS80ATB18H | €427.80 | |
![]() |
DS80ATB19H | €453.68 | |
![]() |
DS80ATB20H | €476.35 | |
![]() |
DS80ATB22H | €469.31 | |
![]() |
DS80ATB23H | €462.99 |
