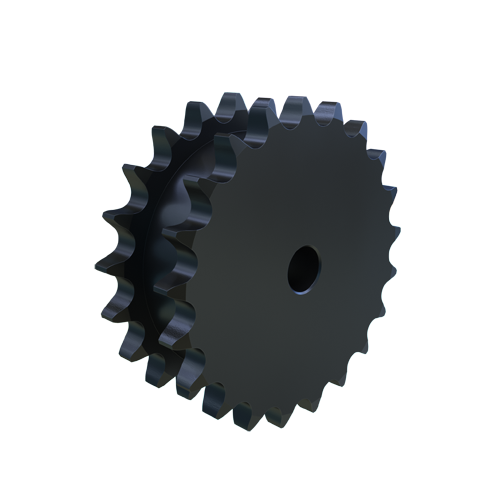

MARTIN SPROCKET DS60A21 Sprocket, Stock Bore, 60 Chain, 21 Teeth, 5.032 Inch Pitch Dia., 5.426 Inch O.D., Steel
Get it by Tuesday, Jun 17
€305.43 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | A |
| Individually Packaged | Yes |
| Length Through Bore | 1.938" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 21 |
| Outside Dia. | 5.426" |
| Pitch Dia. | 5.0321" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 15/16" |
| Storage Dimension Length | 5.426" |
| Storage Dimension Width | 5.426" |
| Ship weight (kg) | 3.83 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 13.79 |
| Ship width (cm) | 13.79 |
