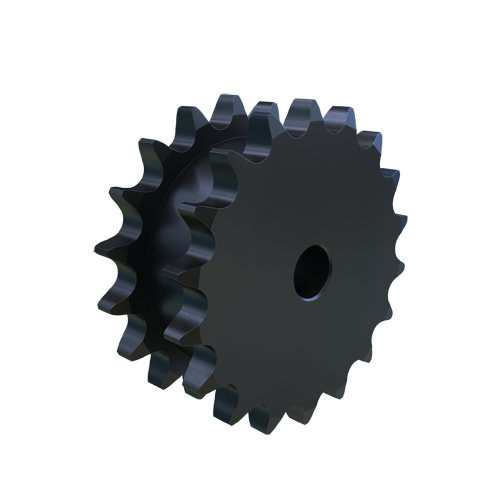

MARTIN SPROCKET DS60A18 Sprocket, Stock Bore, 60 Chain, 18 Teeth, 4.319 Inch Pitch Dia., 4.703 Inch O.D., Steel
Get it by Tuesday, Jun 17
€243.83 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | A |
| Individually Packaged | Yes |
| Length Through Bore | 1.938" |
| Material | Steel |
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 18 |
| Outside Dia. | 4.703" |
| Pitch Dia. | 4.3191" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 15/16" |
| Storage Dimension Length | 4.703" |
| Storage Dimension Width | 4.703" |
| Weight | 5.2 lbs. |
| Ship weight (kg) | 2.69 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 11.94 |
