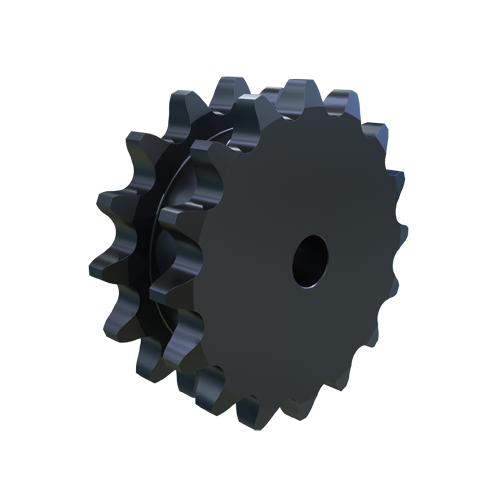

MARTIN SPROCKET DS160A16 Sprocket, 160 Chain, 16 Teeth, 10.252 Inch Pitch Dia., 11.255 Inch O.D., Steel
Get it by Tuesday, Jun 17
€1,262.58 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Construction | Solid |
| Finished Bore Size | 1 9/16" |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 4 1/4" |
| Material | Steel |
| Max. Bore Size | 6" |
| Min. Bore Size | 1.688" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 16 |
| Outside Dia. | 11.255" |
| Pitch Dia. | 10.2517" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 4 1/4" |
| Storage Dimension Length | 11.255" |
| Storage Dimension Width | 11.255" |
| Weight | 75.75 lbs. |
| Ship weight (kg) | 34.09 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 28.6 |
| Ship width (cm) | 28.6 |
