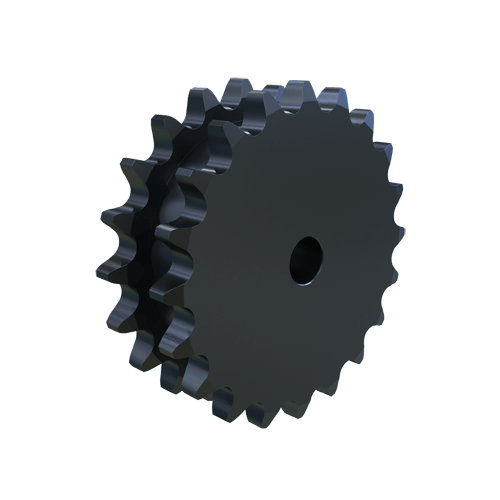

MARTIN SPROCKET DS120A20 Sprocket, 120 Chain, 20 Teeth, 9.589 Inch Pitch Dia., 10.371 Inch O.D., Steel
Get it by Tuesday, Jun 17
€1,039.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Solid |
| Finished Bore Size | 1 7/16" |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 3.354" |
| Material | Steel |
| Max. Bore Size | 5.938" |
| Min. Bore Size | 1.438" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 20 |
| Outside Dia. | 10.371" |
| Pitch Dia. | 9.5887" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 3.354" |
| Storage Dimension Length | 10.371" |
| Storage Dimension Width | 10.371" |
| Weight | 55.38 lbs. |
| Ship weight (kg) | 24.92 |
| Ship height (cm) | 8.52 |
| Ship length (cm) | 26.34 |
| Ship width (cm) | 26.34 |
