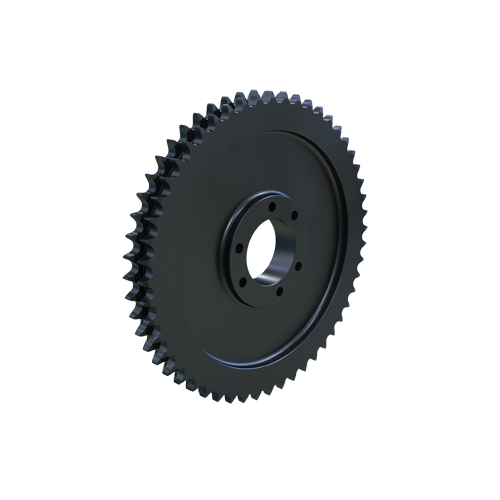

MARTIN SPROCKET D80E52 Sprocket, QD, 80 Chain, 52 Teeth, 16.562 Inch Pitch Dia., 17.132 Inch O.D., Steel
Get it by Tuesday, Jun 17
€901.44 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | E |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | A |
| Hub Outside Dia. | 6 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 5/8" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 7/8" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 52 |
| Outside Dia. | 17.132" |
| Pitch Dia. | 16.5622" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 1.71" |
| Storage Dimension Length | 17.132" |
| Storage Dimension Width | 17.132" |
| Weight | 81.4 lbs. |
| Ship weight (kg) | 26.19 |
| Ship height (cm) | 6.68 |
| Ship length (cm) | 43.51 |
| Ship width (cm) | 43.51 |
