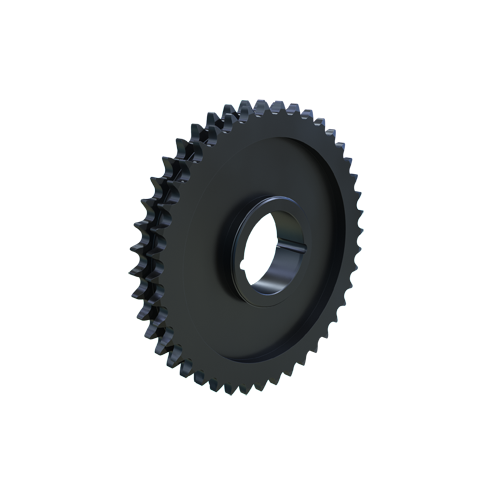

MARTIN SPROCKET D80CTB42 Sprocket, Taper, 80 Chain, 42 Teeth, 13.382 Inch Pitch Dia., 13.944 Inch O.D., Steel
Get it by Tuesday, Jun 17
€677.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 3020 |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | C |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 15/16" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 42 |
| Outside Dia. | 13.944" |
| Pitch Dia. | 13.3815" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 13.944" |
| Storage Dimension Width | 13.944" |
| Weight | 56.92 lbs. |
| Ship weight (kg) | 15.44 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 35.41 |
| Ship width (cm) | 35.41 |
