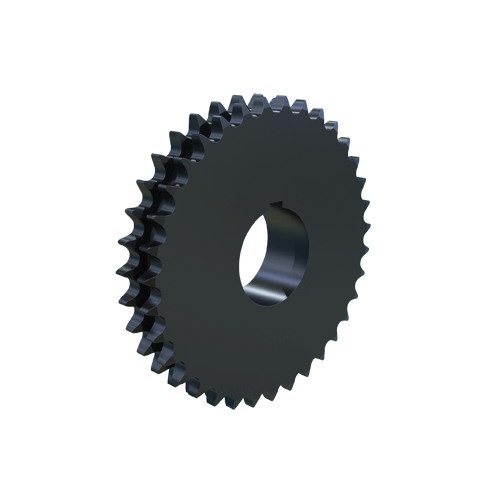

MARTIN SPROCKET D60Q35H Sprocket, MST, 60 Chain, 35 Teeth, 8.367 Inch Pitch Dia., 8.783 Inch O.D., Steel
Get it by Tuesday, Jun 17
€412.04 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 35 |
| Outside Dia. | 8.783" |
| Pitch Dia. | 8.3669" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 8.783" |
| Storage Dimension Width | 8.783" |
| Weight | 17.39 lbs. |
| Ship weight (kg) | 7.83 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 22.3 |
| Ship width (cm) | 22.3 |
