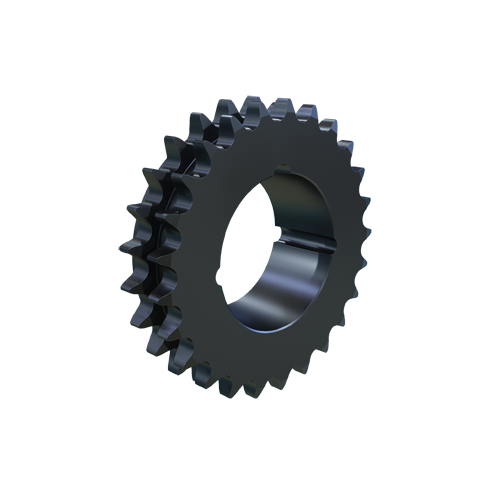

MARTIN SPROCKET D60BTB25H Sprocket, Taper, 60 Chain, 25 Teeth, 5.984 Inch Pitch Dia., 6.387 Inch O.D., Steel
Get it by Tuesday, Jun 17
€245.84 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 2517 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 5.1563" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 25 |
| Outside Dia. | 6.387" |
| Pitch Dia. | 5.984" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 6.387" |
| Storage Dimension Width | 6.387" |
| Weight | 7.58 lbs. |
| Ship weight (kg) | 3.35 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 16.23 |
| Ship width (cm) | 16.23 |
