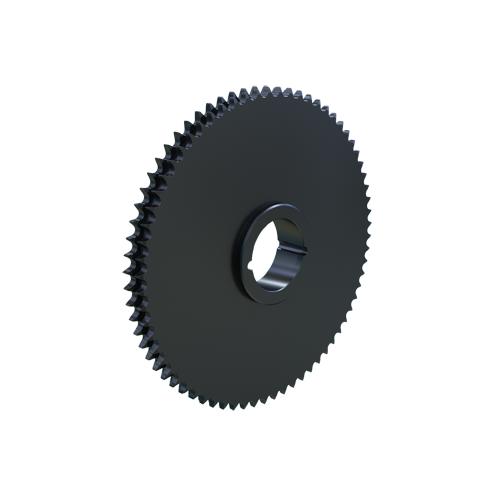

MARTIN SPROCKET D50CTB60 Sprocket, Taper, 50 Chain, 60 Teeth, 11.942 Inch Pitch Dia., 12.301 Inch O.D., Steel
Get it by Tuesday, Jun 17
€440.51 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 2517 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | C |
| Hub Outside Dia. | 4 3/8" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 60 |
| Outside Dia. | 12.301" |
| Pitch Dia. | 11.9421" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 12.301" |
| Storage Dimension Width | 12.301" |
| Weight | 21.98 lbs. |
| Ship weight (kg) | 9.89 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 31.24 |
| Ship width (cm) | 31.24 |
