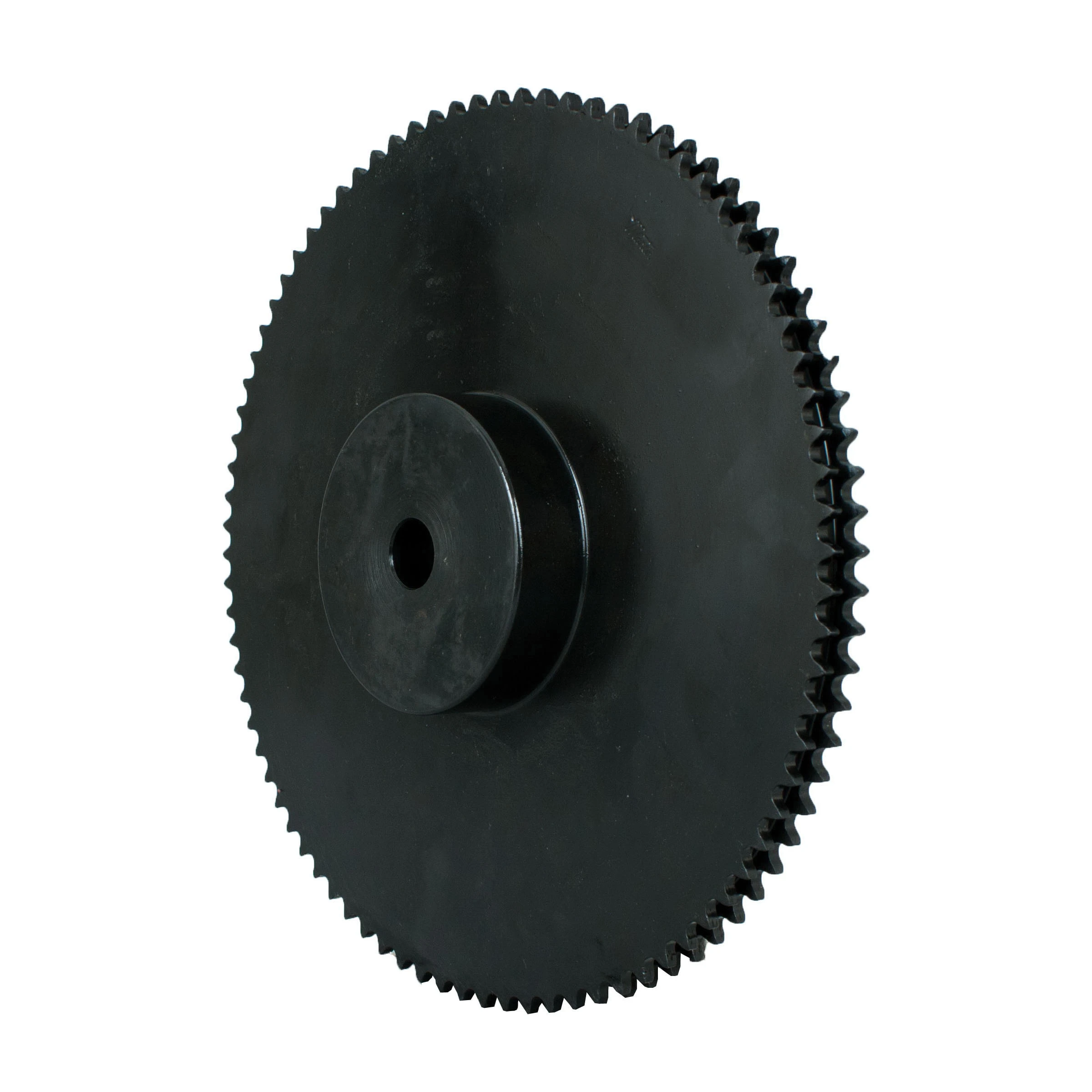

MARTIN SPROCKET D40B72 Sprocket, Stock Bore, 72 Teeth, 11.463 Inch Pitch Dia., 11.752 Inch O.D., Steel
Get it by Tuesday, Jun 17
€282.32 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/8" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1 3/16" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 72 |
| Outside Dia. | 11.752" |
| Pitch Dia. | 11.4628" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 2 1/8" |
| Storage Dimension Length | 11.752" |
| Storage Dimension Width | 11.752" |
| Weight | 27.88 lbs. |
| Ship weight (kg) | 12.55 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 29.85 |
