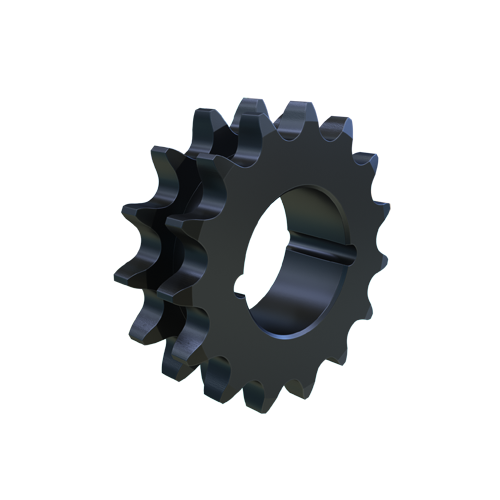

MARTIN SPROCKET D40ATB15H Sprocket, Taper, 40 Chain, 15 Teeth, 2.405 Inch Pitch Dia., 2.652 Inch O.D., Steel
Get it by Tuesday, Jun 17
€129.72 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 1008 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Hub Outside Dia. | 1 13/16" |
| Individually Packaged | No |
| Length Through Bore | 0.8365" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 15 |
| Outside Dia. | 2.652" |
| Pitch Dia. | 2.4049" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 21/25" |
| Storage Dimension Length | 2.652" |
| Storage Dimension Width | 2.652" |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 6.73 |
| Ship width (cm) | 6.73 |
