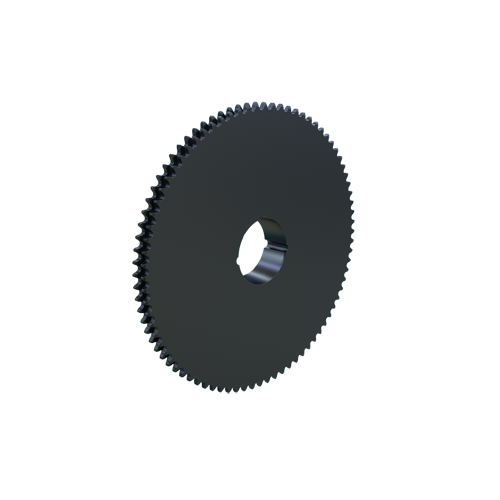

MARTIN SPROCKET D35BTB80 Sprocket, Taper, 35 Chain, 80 Teeth, 9.552 Inch Pitch Dia., 9.769 Inch O.D., Steel
Get it by Tuesday, Jun 17
€269.11 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 1610 |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 5/8" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 5/8" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 80 |
| Outside Dia. | 9.769" |
| Pitch Dia. | 9.5518" |
| Single Strand Tooth Thickness | 0.163" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 9.769" |
| Storage Dimension Width | 9.769" |
| Weight | 11.07 lbs. |
| Ship weight (kg) | 4.98 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 24.82 |
| Ship width (cm) | 24.82 |
