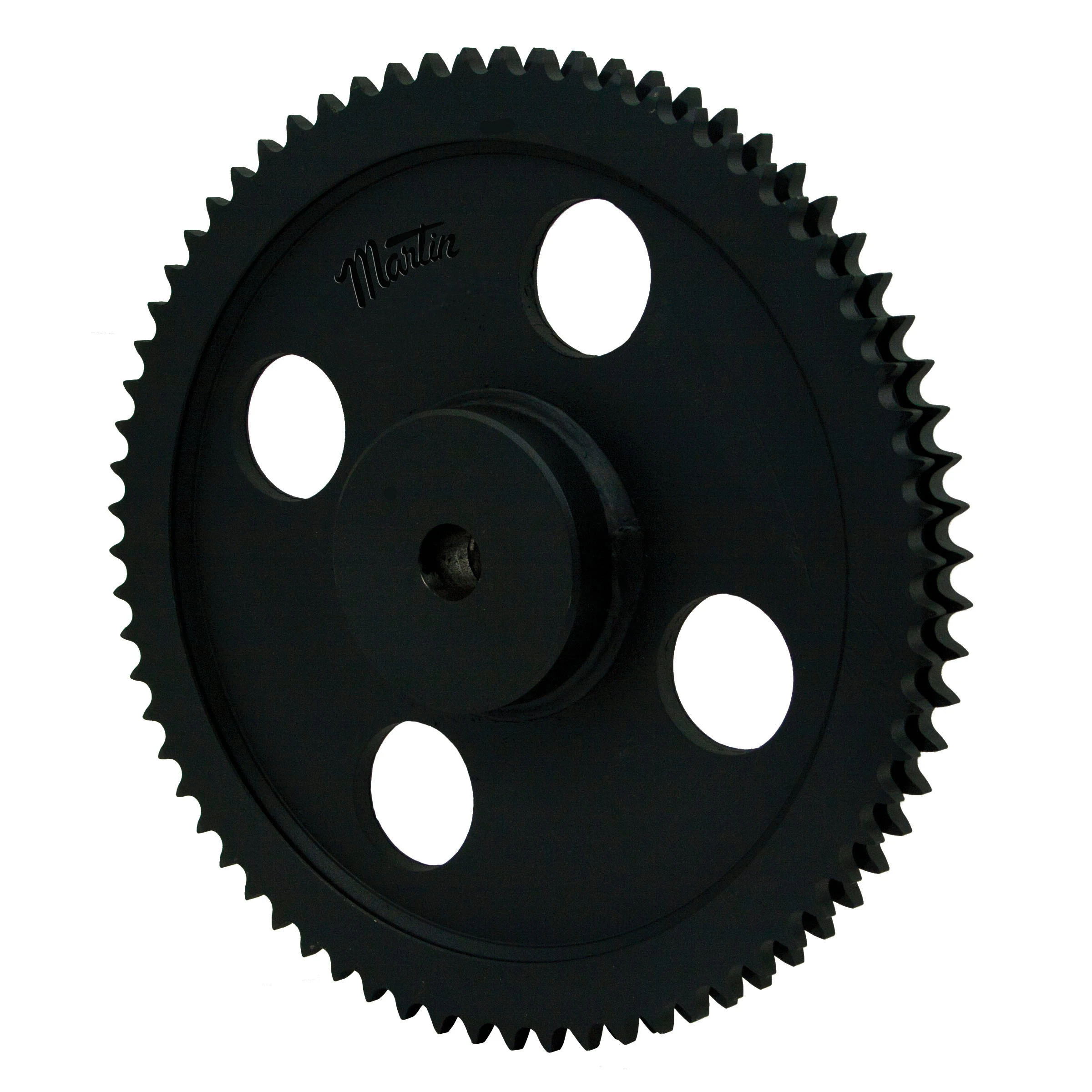

MARTIN SPROCKET D200C60 Roller Chain Sprocket, 200 Chain, Stock Bore, 60 Teeth, 47.768 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€10,281.82 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 200 |
| Chain Pitch | 2 1/2" |
| Construction | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 200 |
| For Chain Pitch | 2 1/2" |
| Hub Configuration | C |
| Hub Outside Dia. | 10" |
| Individually Packaged | No |
| Length Through Bore | 9" |
| Material | Steel |
| Max. Bore Size | 7" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 60 |
| Outside Dia. | 49.203" |
| Pitch Dia. | 47.7683" |
| Single Strand Tooth Thickness | 1.344" |
| Storage Dimension Height | 9" |
| Storage Dimension Length | 49.203" |
| Storage Dimension Width | 49.203" |
| Weight | 972 lbs. |
| Ship weight (kg) | 437.4 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 124.97 |
| Ship width (cm) | 124.97 |
| Product | Model | Price | |
|---|---|---|---|
 |
D200C45 | €6,977.11 |
