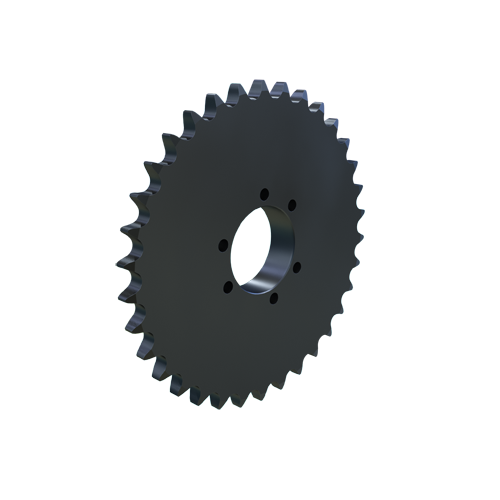

MARTIN SPROCKET 80SF34 Sprocket, 80 Chain, 34 Teeth, 10.838 Inch Pitch Dia., 11.392 Inch O.D., Steel
Get it by Tuesday, Jun 17
€237.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SF |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 15/16" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 34 |
| Outside Dia. | 11.392" |
| Pitch Dia. | 10.838" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 11.392" |
| Storage Dimension Width | 11.392" |
| Weight | 14.14 lbs. |
| Ship weight (kg) | 6.36 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 28.93 |
| Ship width (cm) | 28.93 |
