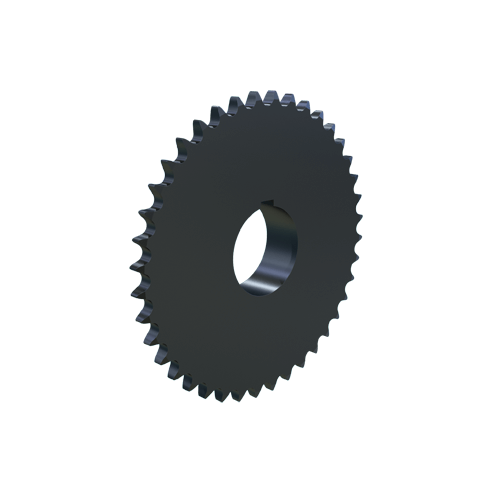

MARTIN SPROCKET 80R40 Sprocket, MST, 80 Chain, 40 Teeth, 12.746 Inch Pitch Dia., 13.306 Inch O.D., Steel
Get it by Tuesday, Jun 17
€362.22 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 40 |
| Outside Dia. | 13.306" |
| Pitch Dia. | 12.7455" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 13.306" |
| Storage Dimension Width | 13.306" |
| Weight | 22.2 lbs. |
| Ship weight (kg) | 9.86 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 33.81 |
| Ship width (cm) | 33.81 |
