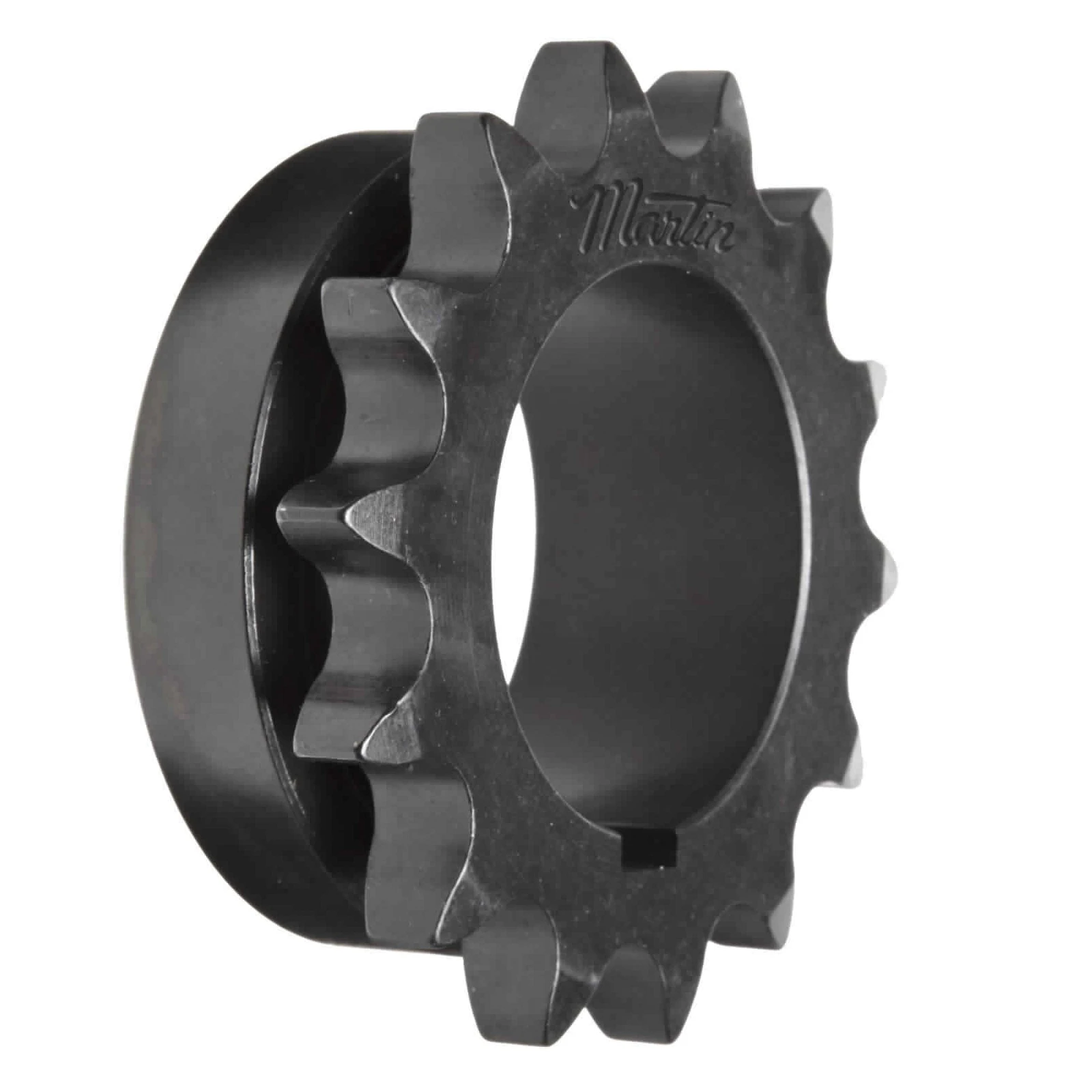

MARTIN SPROCKET 80H10H Sprocket, 80 Chain, 10 Teeth, 3.236 Inch Pitch Dia., 3.678 Inch O.D., Steel
Get it by Tuesday, Jun 17
€136.77 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | H |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid With Recess Groove |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/2" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Length Through Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 10 |
| Outside Dia. | 3.678" |
| Pitch Dia. | 3.2361" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 14/25" |
| Storage Dimension Length | 3 3/4" |
| Storage Dimension Width | 3 3/4" |
| Ship weight (kg) | 0.64 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.35 |
| Ship width (cm) | 9.35 |
