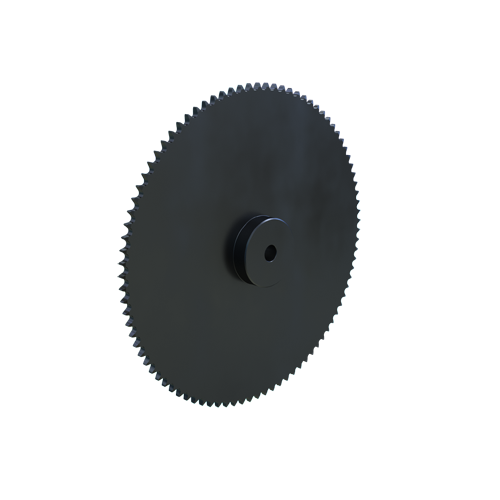

MARTIN SPROCKET 80C90 Sprocket, 80 Chain, 90 Teeth, 28.654 Inch Pitch Dia., 29.236 Inch O.D., Steel
Get it by Tuesday, Jun 17
€740.77 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | C |
| Hub Outside Dia. | 6 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3 1/2" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 90 |
| Outside Dia. | 29.236" |
| Pitch Dia. | 28.6537" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 3 1/2" |
| Storage Dimension Length | 29 6/25" |
| Storage Dimension Width | 29 6/25" |
| Weight | 125.85 lbs. |
| Ship weight (kg) | 47.7 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 74.27 |
| Ship width (cm) | 74.27 |
