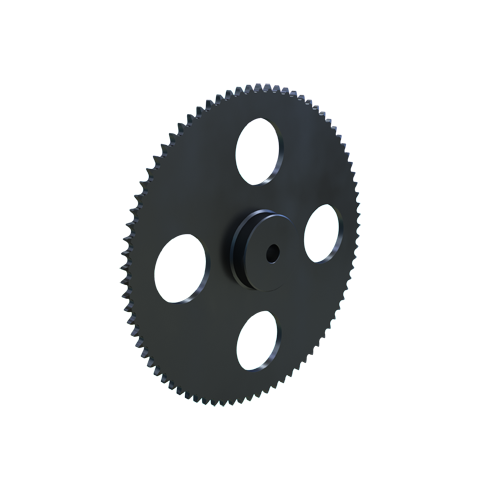

MARTIN SPROCKET 80C80 Sprocket, 80 Chain, 80 Teeth, 25.471 Inch Pitch Dia., 26.052 Inch O.D., Steel
Get it by Tuesday, Jun 17
€641.76 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | C |
| Hub Outside Dia. | 6 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3 1/2" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 80 |
| Outside Dia. | 26.052" |
| Pitch Dia. | 25.4713" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 3 1/2" |
| Storage Dimension Length | 26.05" |
| Storage Dimension Width | 26.05" |
| Weight | 104.24 lbs. |
| Ship weight (kg) | 40.46 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 66.17 |
| Ship width (cm) | 66.17 |
