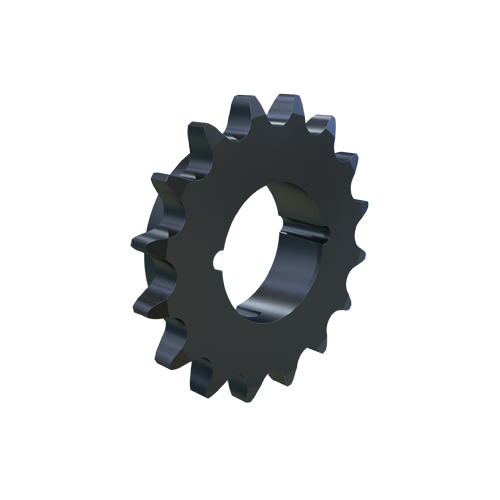

MARTIN SPROCKET 80BTB16H Sprocket, Taper, 80 Chain, 16 Teeth, 5.126 Inch Pitch Dia., 5.627 Inch O.D., Steel
Get it by Tuesday, Jun 17
€145.10 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 2012 |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 3 9/16" |
| Individually Packaged | Yes |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 5.627" |
| Pitch Dia. | 5.1258" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 6" |
| Storage Dimension Width | 6" |
| Weight | 3.05 lbs. |
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 14.3 |
| Ship width (cm) | 14.3 |
