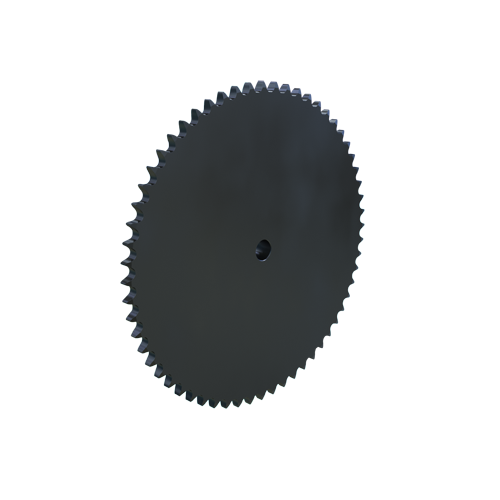

MARTIN SPROCKET 80B60 Sprocket, 80 Chain, 60 Teeth, 19.107 Inch Pitch Dia., 19.681 Inch O.D., Steel
Get it by Tuesday, Jun 17
€395.43 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 1/2" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 60 |
| Outside Dia. | 19.681" |
| Pitch Dia. | 19.1073" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 19 17/25" |
| Storage Dimension Width | 19 17/25" |
| Weight | 53.14 lbs. |
| Ship weight (kg) | 23.91 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 49.99 |
| Ship width (cm) | 49.99 |
