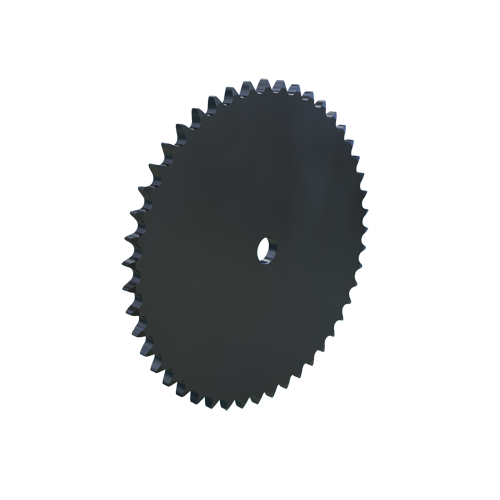

MARTIN SPROCKET 80A47 Sprocket, 80 Chain, 47 Teeth, 14.972 Inch Pitch Dia., 15.538 Inch O.D., Steel
Get it by Tuesday, Jun 17
€210.71 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.551" |
| Material | Steel |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 47 |
| Outside Dia. | 15.538" |
| Pitch Dia. | 14.9717" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 0.575" |
| Storage Dimension Length | 15.538" |
| Storage Dimension Width | 15.538" |
| Weight | 26.43 lbs. |
| Ship weight (kg) | 11.89 |
| Ship height (cm) | 1.46 |
| Ship length (cm) | 39.47 |
| Ship width (cm) | 39.47 |
