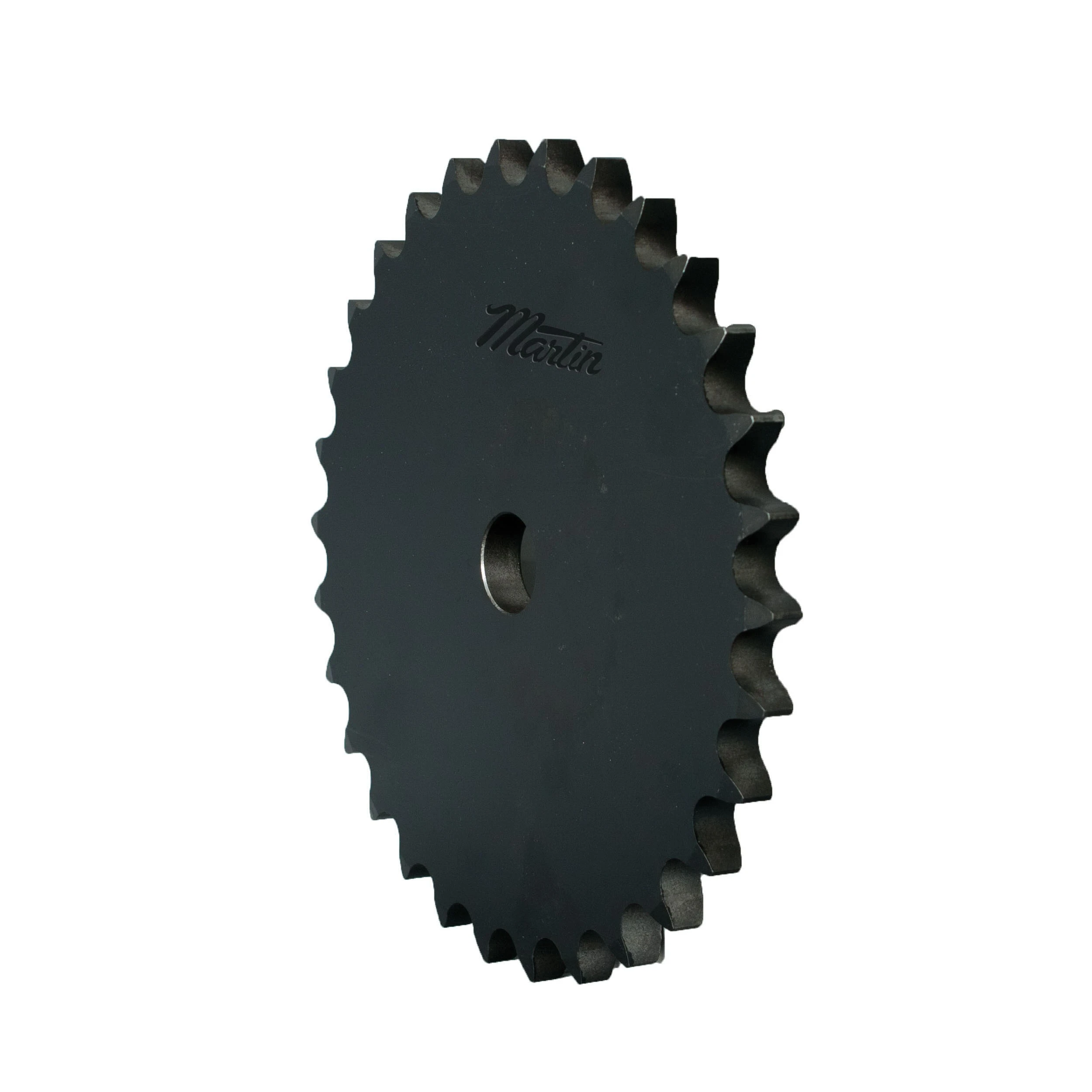

MARTIN SPROCKET 80A33 Sprocket, 80 Chain, 33 Teeth, 10.520 Inch Pitch Dia., 11.072 Inch O.D., Steel
Get it by Tuesday, Jun 17
€106.58 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.551" |
| Material | Steel |
| Min. Bore Size | 1 3/16" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 33 |
| Outside Dia. | 11.072" |
| Pitch Dia. | 10.5201" |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 0.575" |
| Storage Dimension Length | 11.073" |
| Storage Dimension Width | 11.073" |
| Weight | 12.8 lbs. |
| Ship weight (kg) | 6.14 |
| Ship height (cm) | 1.47 |
| Ship length (cm) | 28.12 |
| Ship width (cm) | 28.12 |
