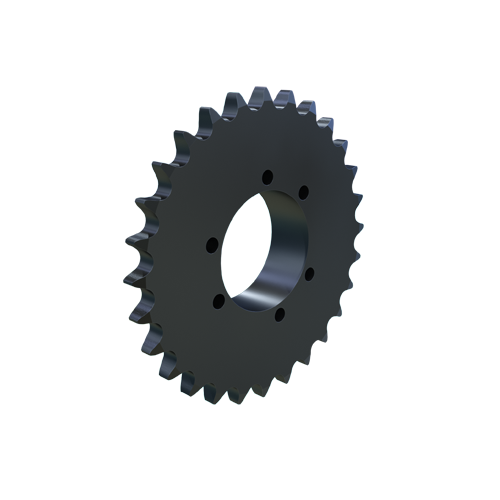

MARTIN SPROCKET 60SK28 Sprocket, QD, 60 Chain, 28 Teeth, 6.699 Inch Pitch Dia., 7.106 Inch O.D., Steel
Get it by Tuesday, Jun 17
€157.72 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SK |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Welded |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 5/8" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 28 |
| Outside Dia. | 7.106" |
| Pitch Dia. | 6.6986" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 7.106" |
| Storage Dimension Width | 7.106" |
| Weight | 4.8 lbs. |
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 18.06 |
| Ship width (cm) | 18.06 |
