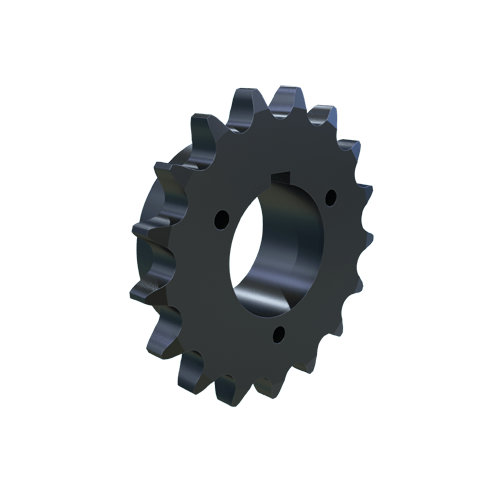

MARTIN SPROCKET 60Q21H Roller Chain Sprocket, 60 Chain, Bushed MST, 21 Teeth, 5.032 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€181.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/8" |
| Individually Packaged | Yes |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 21 |
| Outside Dia. | 5.426" |
| Pitch Dia. | 5.0321" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 2.06" |
| Storage Dimension Length | 5 1/2" |
| Storage Dimension Width | 5 1/2" |
| Weight | 4.04 lbs. |
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 13.79 |
| Ship width (cm) | 13.79 |
