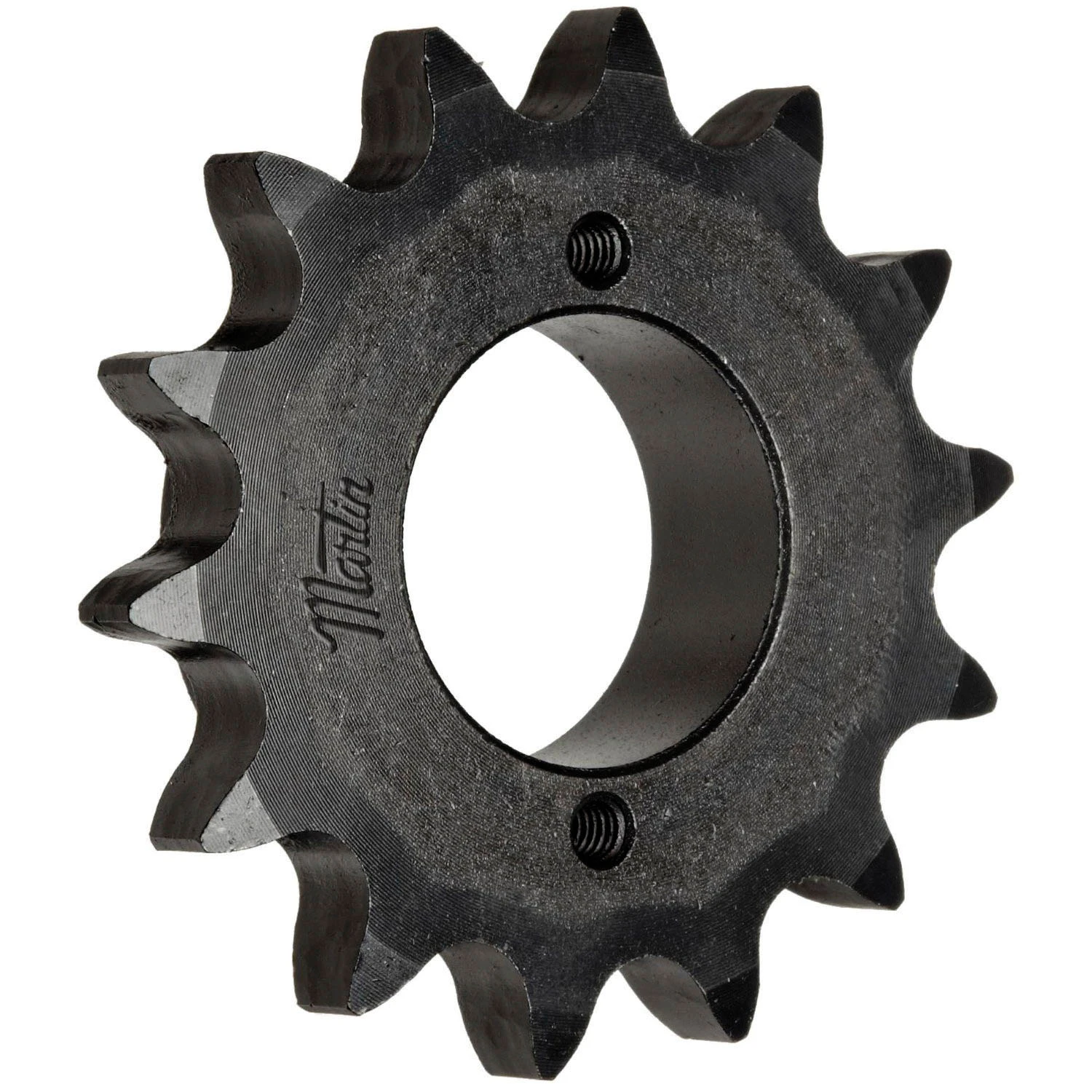

MARTIN SPROCKET 60H16H Roller Chain Sprocket, 60 Chain, Bushed MST, 16 Teeth, 3.844 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€142.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | H |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | Yes |
| Length Through Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 4.221" |
| Pitch Dia. | 3.8444" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 10.72 |
| Ship width (cm) | 10.72 |
