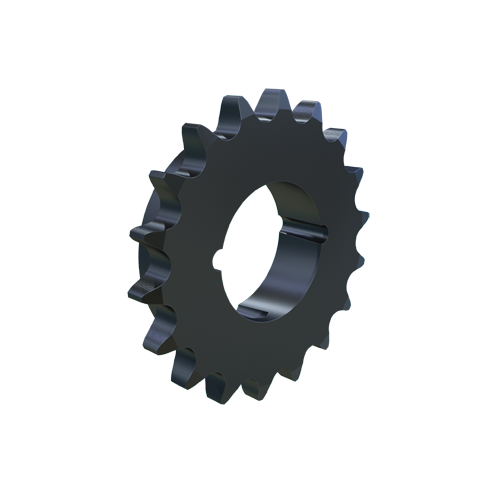

MARTIN SPROCKET 60BTB18 Roller Chain Sprocket, 60 Chain, Bushed TB, 18 Teeth, 4.319 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€120.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | 1610 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | Yes |
| Length Through Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 5/8" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 18 |
| Outside Dia. | 4.703" |
| Pitch Dia. | 4.3191" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 13/16" |
| Storage Dimension Width | 4 13/16" |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 11.94 |
