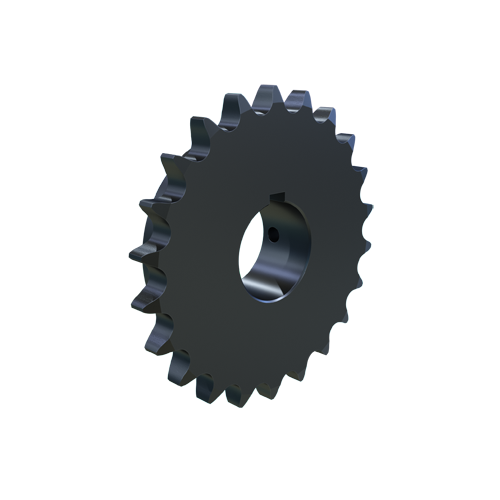

MARTIN SPROCKET 60BS22 1 3/4 Roller Chain Sprocket, Bore To Size, 1.750 Inch Bore, 5.666 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€126.21 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 1 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4" |
| Individually Packaged | Yes |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 22 |
| Outside Dia. | 5.666" |
| Pitch Dia. | 5.27" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 6" |
| Storage Dimension Width | 6" |
| Weight | 4 lbs. |
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 14.4 |
| Ship width (cm) | 14.4 |
| Product | Model | Price | |
|---|---|---|---|
 |
60BS11 1 1/4 | €41.06 | |
 |
60BS12 1 1/4 | €45.69 | |
 |
60BS18 1 1/4 | €86.07 | |
 |
60BS9 5/8 | €36.46 | |
|
60BS10 5/8 | €38.07 | |
 |
60BS9 3/4 | €36.46 | |
 |
60BS10 3/4 | €38.07 |
