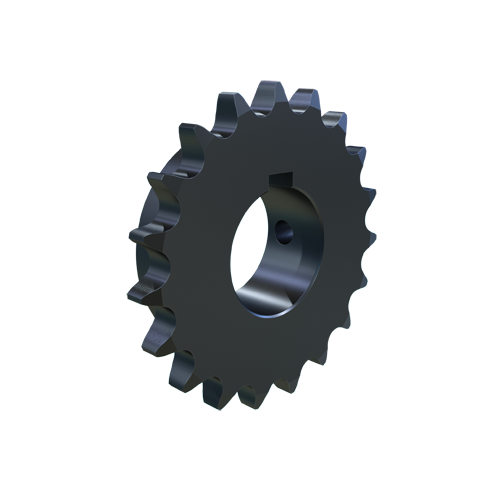

MARTIN SPROCKET 60BS19HT 1 15/16 Roller Chain Sprocket, 1.938 Inch Bore, 4.945 Inch Outside Dia. Steel, Hardened
Get it by Tuesday, Jun 17
€133.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 1 15/16" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | Yes |
| Keyway Size | 1/2" x 1/4" |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 19 |
| Outside Dia. | 4.945" |
| Pitch Dia. | 4.5567" |
| Set Screw Size | 1/2"-13 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 4 13/16" |
| Storage Dimension Width | 4 13/16" |
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 12.57 |
| Ship width (cm) | 12.57 |
| Product | Model | Price | |
|---|---|---|---|
 |
60BS9HT 3/4 | €58.72 | |
 |
60BS10HT 3/4 | €62.25 | |
 |
60BS11HT 3/4 | €67.26 | |
 |
60BS12HT 3/4 | €73.90 | |
 |
60BS13HT 3/4 | €81.02 | |
 |
60BS14HT 3/4 | €87.66 | |
 |
60BS15HT 3/4 | €95.19 |
