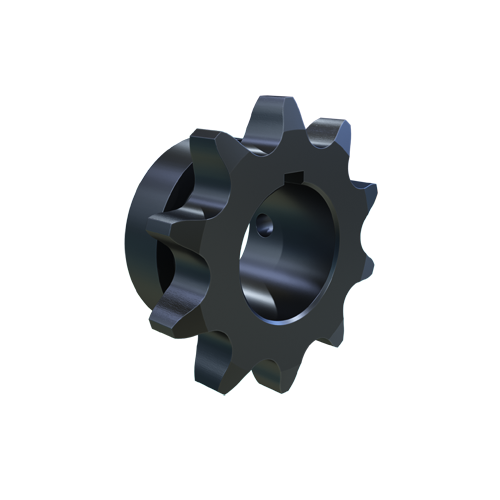

MARTIN SPROCKET 60BS10HT 1 1/4 Roller Chain Sprocket, 1.250 Inch Bore, 2.758 Inch Outside Dia. Steel, Hardened
Get it by Tuesday, Jun 17
€72.99 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid With Recess Groove |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 1 15/16" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 1 1/4" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 10 |
| Outside Dia. | 2.758" |
| Pitch Dia. | 2.4271" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 3 1/8" |
| Storage Dimension Width | 3 1/8" |
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 7.01 |
| Ship width (cm) | 7.01 |
| Product | Model | Price | |
|---|---|---|---|
 |
60BS9HT 3/4 | €58.72 | |
 |
60BS10HT 3/4 | €62.25 | |
 |
60BS11HT 3/4 | €67.26 | |
 |
60BS12HT 3/4 | €73.90 | |
 |
60BS13HT 3/4 | €81.02 | |
 |
60BS14HT 3/4 | €87.66 | |
 |
60BS15HT 3/4 | €95.19 |
