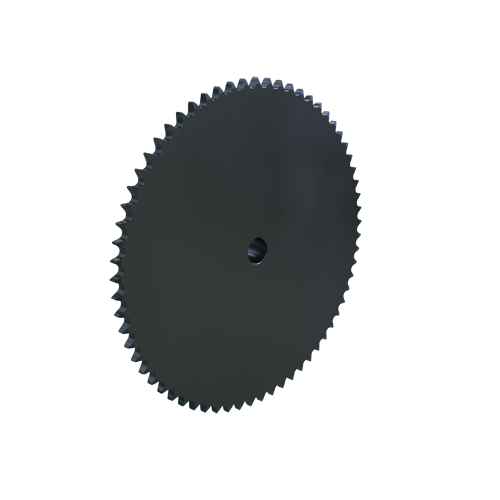

MARTIN SPROCKET 60B65 Sprocket, 60 Chain, 65 Teeth, 15.524 Inch Pitch Dia., 15.956 Inch O.D., Steel
Get it by Tuesday, Jun 17
€239.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 65 |
| Outside Dia. | 15.956" |
| Pitch Dia. | 15.5237" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 15 24/25" |
| Storage Dimension Width | 15 24/25" |
| Weight | 28.34 lbs. |
| Ship weight (kg) | 12.75 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 40.54 |
| Ship width (cm) | 40.54 |
