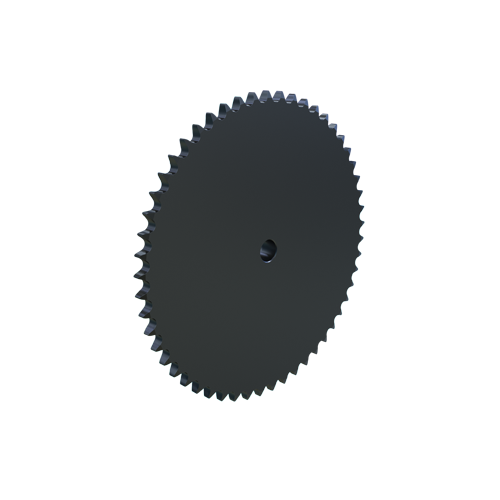

MARTIN SPROCKET 60B53 Sprocket, 60 Chain, 53 Teeth, 12.660 Inch Pitch Dia., 13.088 Inch O.D., Steel
Get it by Wednesday, Jun 18
€153.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Welded |
| Finished Bore Size | 15/16" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 15/16" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 53 |
| Outside Dia. | 13.088" |
| Pitch Dia. | 12.6602" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 13.09" |
| Storage Dimension Width | 13.09" |
| Weight | 18.66 lbs. |
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 33.25 |
| Ship width (cm) | 33.25 |
