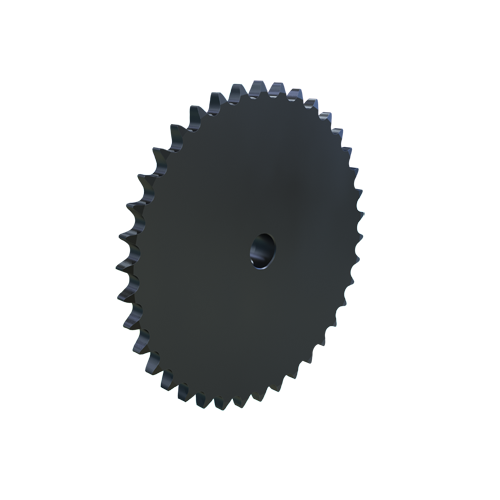

MARTIN SPROCKET 60B38 Sprocket, 60 Chain, 38 Teeth, 9.082 Inch Pitch Dia., 9.501 Inch O.D., Steel
Get it by Tuesday, Jun 17
€142.20 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Welded |
| Finished Bore Size | 1" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 38 |
| Outside Dia. | 9.501" |
| Pitch Dia. | 9.0822" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 9 1/2" |
| Storage Dimension Width | 9 1/2" |
| Weight | 10.91 lbs. |
| Ship weight (kg) | 4.88 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 24.13 |
