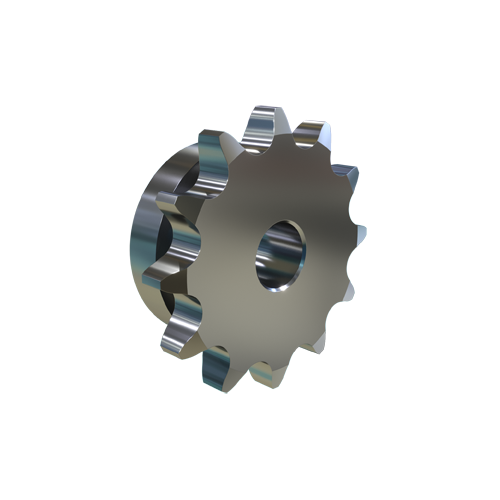

MARTIN SPROCKET 60B12SS Roller Chain Sprocket, 60 Chain, 12 Teeth, 2.898 Inch Pitch Dia., 3.249 Inch O.D., SS
Get it by Tuesday, Jun 17
€271.12 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 3/8" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Stainless Steel |
| Max. Bore Size | 1 3/8" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 12 |
| Outside Dia. | 3.249" |
| Pitch Dia. | 2.898" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 3 1/4" |
| Storage Dimension Width | 3 1/4" |
| Weight | 1.5 lbs. |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
