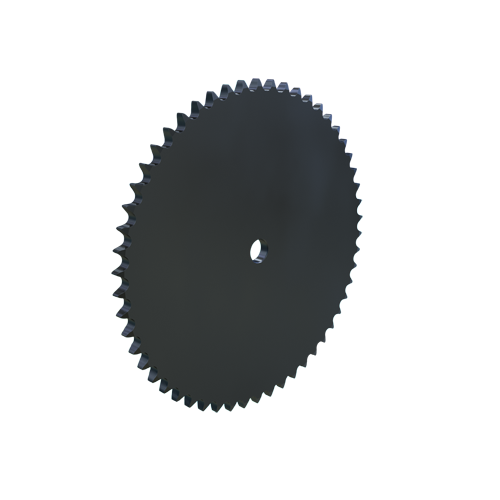

MARTIN SPROCKET 60A54 Sprocket, 60 Chain, 54 Teeth, 12.899 Inch Pitch Dia., 13.327 Inch O.D., Steel
Get it by Tuesday, Jun 17
€102.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 15/16" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.433" |
| Material | Steel |
| Min. Bore Size | 15/16" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 13.327" |
| Pitch Dia. | 12.8988" |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 0.459" |
| Storage Dimension Length | 13.327" |
| Storage Dimension Width | 13.327" |
| Weight | 15.5 lbs. |
| Ship weight (kg) | 6.98 |
| Ship height (cm) | 1.17 |
| Ship length (cm) | 33.86 |
| Ship width (cm) | 33.86 |
