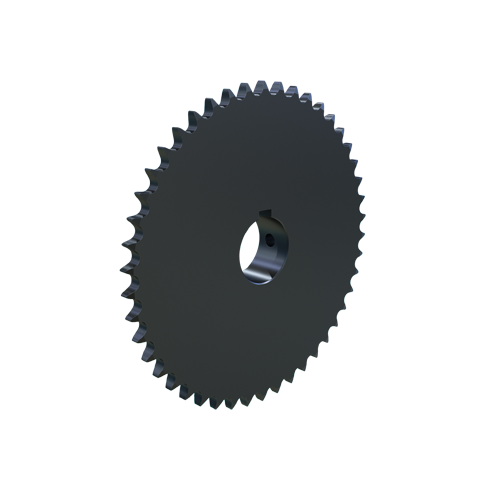

MARTIN SPROCKET 50BS46 1 15/16 Roller Chain Sprocket, Bore To Size, 1.938 Inch Bore, 9.512 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€150.94 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Finished Bore Size | 1 15/16" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 3/4" |
| Individually Packaged | No |
| Keyway Size | 1/2" x 1/4" |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 46 |
| Outside Dia. | 9.512" |
| Pitch Dia. | 9.1585" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/2"-13 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 9.512" |
| Storage Dimension Width | 9.512" |
| Weight | 7.4 lbs. |
| Ship weight (kg) | 3.7 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 24.16 |
| Ship width (cm) | 24.16 |
| Product | Model | Price | |
|---|---|---|---|
 |
50BS41 1 3/16 | €122.76 | |
 |
50BS41 1 1/4 | €122.76 | |
 |
50BS41 1 3/8 | €122.76 | |
 |
50BS41 1 7/16 | €122.76 | |
 |
50BS41 1 1/2 | €122.76 | |
 |
50BS41 1 3/4 | €122.76 | |
 |
50BS9 5/8 | €33.91 |
