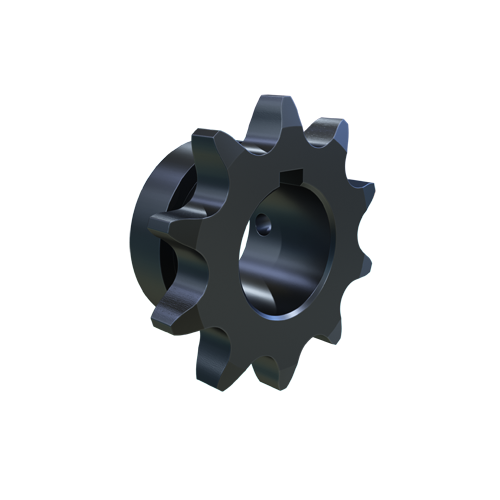

MARTIN SPROCKET 50BS10HT 1 Roller Chain Sprocket, 1 Inch Bore, 2.299 Inch Outside Dia. Steel, Hardened
Get it by Tuesday, Jun 17
€63.80 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid With Recess |
| Finished Bore Size | 1" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 1 9/16" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 10 |
| Outside Dia. | 2.299" |
| Pitch Dia. | 2.0225" |
| Set Screw Location | (1) At 90° And (1) At 180° For Keyway |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 2 9/16" |
| Storage Dimension Width | 2 9/16" |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 5.84 |
| Product | Model | Price | |
|---|---|---|---|
 |
50BS9HT 5/8 | €50.37 | |
 |
50BS10HT 5/8 | €54.42 | |
 |
50BS11HT 5/8 | €57.04 | |
 |
50BS12HT 5/8 | €61.07 | |
 |
50BS13HT 5/8 | €62.73 | |
 |
50BS14HT 5/8 | €66.55 | |
 |
50BS15HT 5/8 | €69.85 |
