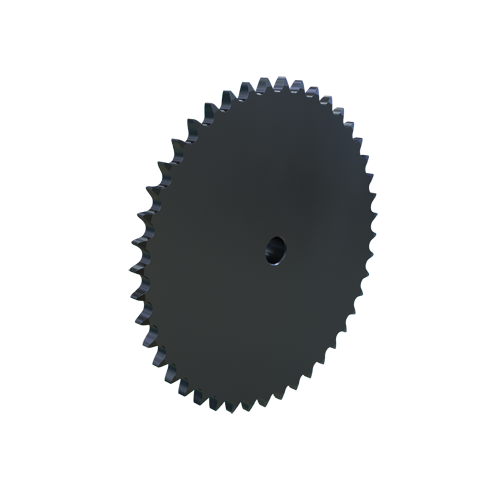

MARTIN SPROCKET 50B44 Sprocket, 50 Chain, 44 Teeth, 8.761 Inch Pitch Dia., 9.114 Inch O.D., Steel
Get it by Tuesday, Jun 17
€119.94 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 44 |
| Outside Dia. | 9.114" |
| Pitch Dia. | 8.761" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 9.11" |
| Storage Dimension Width | 9.11" |
| Weight | 7.55 lbs. |
| Ship weight (kg) | 3.4 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 23.14 |
| Ship width (cm) | 23.14 |
