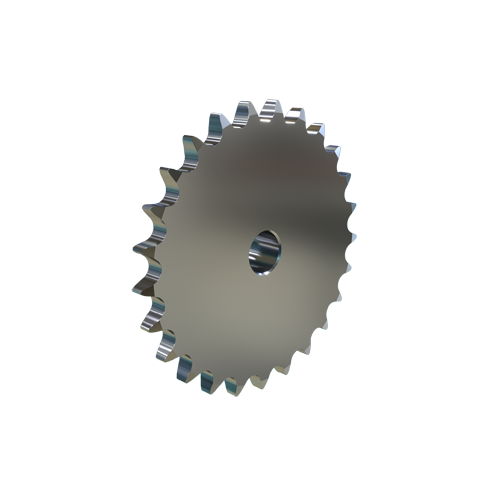

MARTIN SPROCKET 50B25SS Roller Chain Sprocket, 50 Chain, Stock Bore, 25 Teeth, 4.987 Inch Pitch Dia., SS
Get it by Tuesday, Jun 17
€742.43 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Stainless Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 25 |
| Outside Dia. | 5.323" |
| Pitch Dia. | 4.987" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 5.523" |
| Storage Dimension Width | 5.523" |
| Weight | 3.4 lbs. |
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.51 |
| Ship width (cm) | 13.51 |
