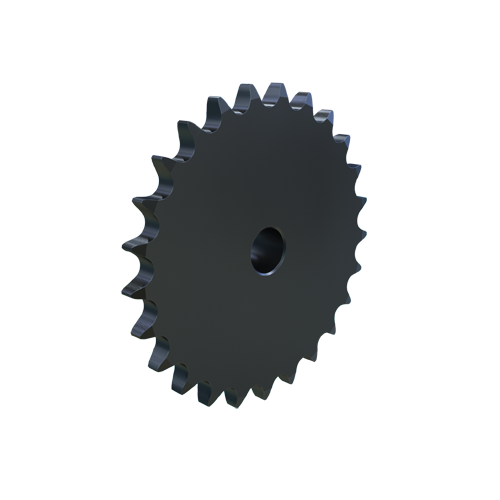

MARTIN SPROCKET 50B25 Sprocket, Stock Bore, 50 Chain, 25 Teeth, 4.987 Inch Pitch Dia., 5.322 Inch O.D., Steel
Get it by Tuesday, Jun 17
€93.11 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 25 |
| Outside Dia. | 5.322" |
| Pitch Dia. | 4.9867" |
| Set Screw Size | 3/4"-10 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 5 8/25" |
| Storage Dimension Width | 5 8/25" |
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.51 |
| Ship width (cm) | 13.51 |
