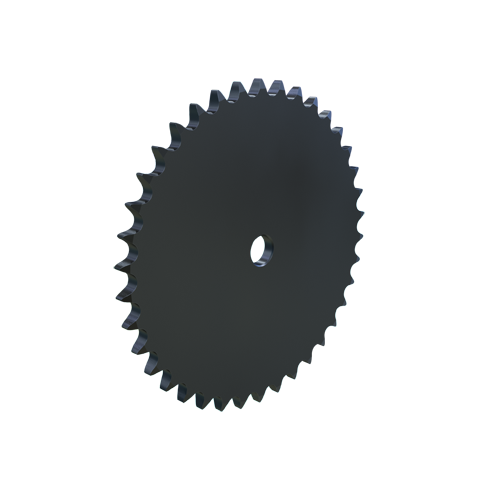

MARTIN SPROCKET 50A38 Sprocket, 50 Chain, 38 Teeth, 7.569 Inch Pitch Dia., 7.918 Inch O.D., Steel
Get it by Tuesday, Jun 17
€73.31 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.315" |
| Material | Steel |
| Min. Bore Size | 0.7188" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 38 |
| Outside Dia. | 7.918" |
| Pitch Dia. | 7.5685" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 0.343" |
| Storage Dimension Length | 7.918" |
| Storage Dimension Width | 7.918" |
| Ship weight (kg) | 1.86 |
| Ship height (cm) | 0.86 |
| Ship length (cm) | 20.12 |
| Ship width (cm) | 20.12 |
