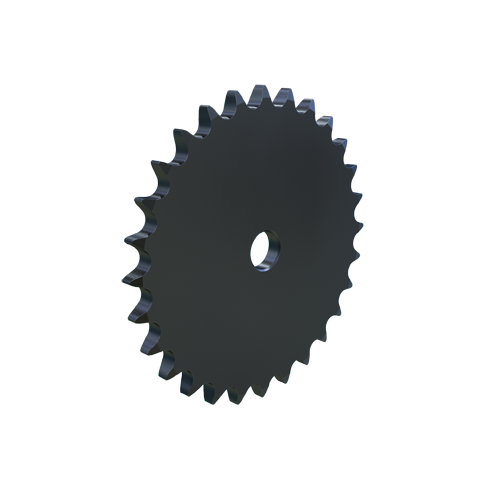

| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.315" |
| Material | Steel |
| Min. Bore Size | 0.7188" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 28 |
| Outside Dia. | 5.922" |
| Pitch Dia. | 5.5821" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/4"-10 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 0.343" |
| Storage Dimension Length | 5.922" |
| Storage Dimension Width | 5.922" |
| Weight | 2.02 lbs. |
| Ship weight (kg) | 0.91 |
| Ship height (cm) | 0.86 |
| Ship length (cm) | 15.04 |
| Ship width (cm) | 15.04 |
