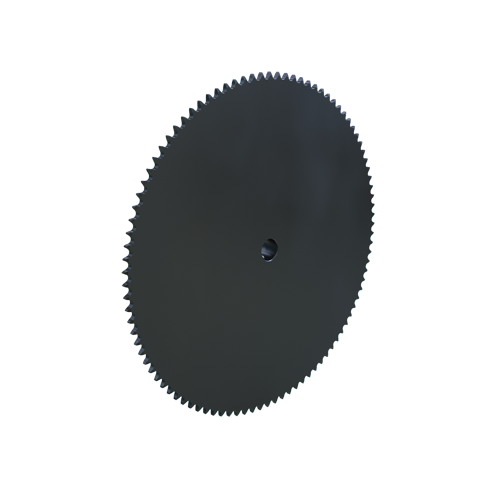

MARTIN SPROCKET 41B96 Sprocket, 41 Chain, 96 Teeth, 15.282 Inch Pitch Dia., 15.573 Inch O.D., Steel
Get it by Tuesday, Jun 17
€152.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| Finished Bore Size | 1" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/16" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 96 |
| Outside Dia. | 15.573" |
| Pitch Dia. | 15.2816" |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1 3/16" |
| Storage Dimension Length | 15.57" |
| Storage Dimension Width | 15.57" |
| Weight | 14.57 lbs. |
| Ship weight (kg) | 6.56 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 39.55 |
| Ship width (cm) | 39.55 |
