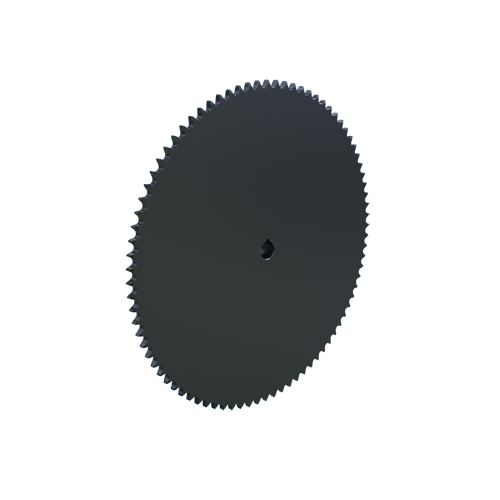

MARTIN SPROCKET 40BS84 3/4 Roller Chain Sprocket, 40 Chain No., 0.750 Inch Bore, 13.663 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€161.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 84 |
| Outside Dia. | 13.663" |
| Pitch Dia. | 13.3721" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 13.663" |
| Storage Dimension Width | 13.663" |
| Weight | 13.8 lbs. |
| Ship weight (kg) | 6.21 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 34.7 |
| Ship width (cm) | 34.7 |
| Product | Model | Price | |
|---|---|---|---|
 |
40BS9 1/2 | €24.69 | |
 |
40BS10 1/2 | €25.59 | |
 |
40BS11 1/2 | €26.76 | |
 |
40BS12 1/2 | €29.31 | |
 |
40BS13 1/2 | €30.68 | |
 |
40BS14 1/2 | €32.29 | |
 |
40BS15 1/2 | €34.84 |
