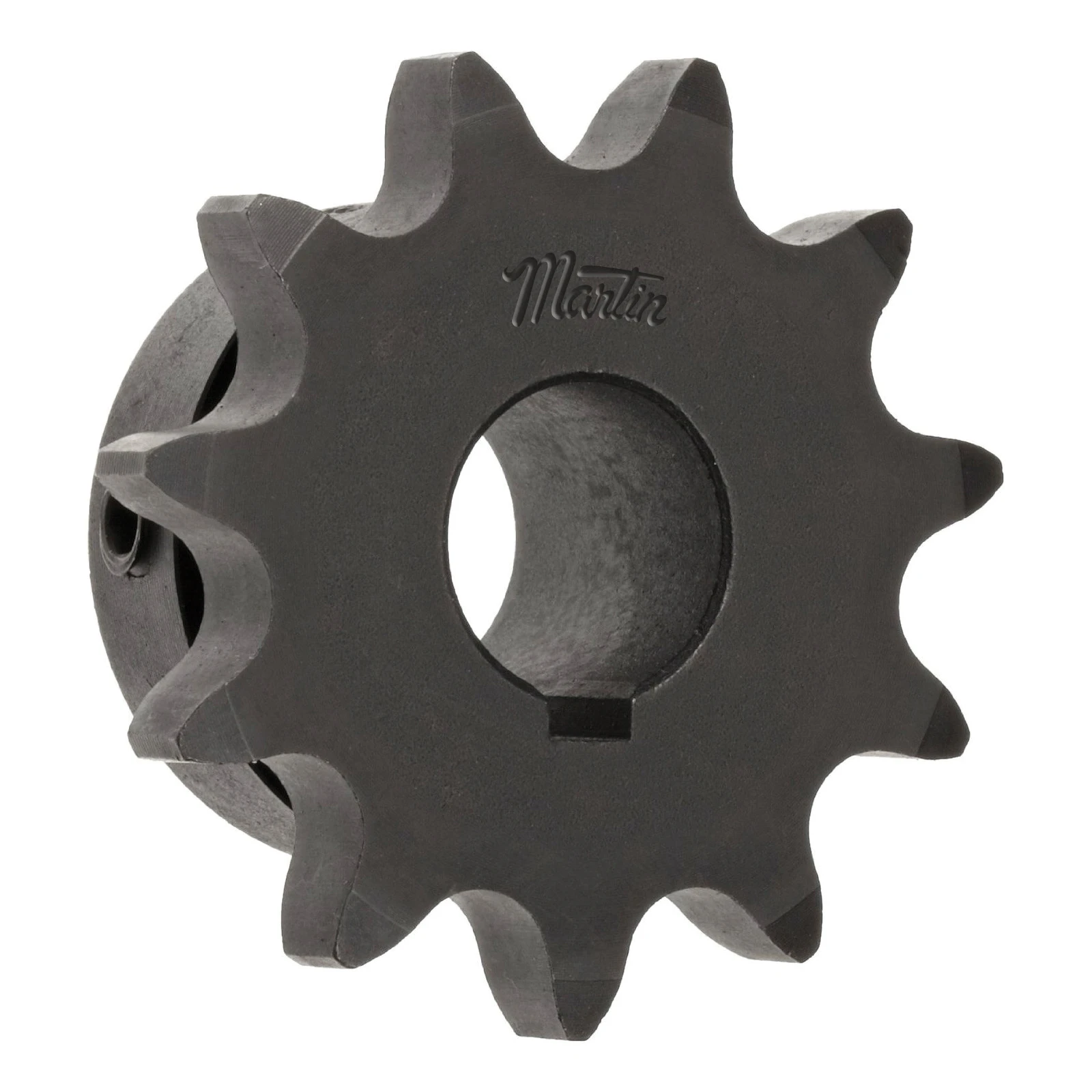

MARTIN SPROCKET 40BS18HT 1 1/2 Roller Chain Sprocket, 1.5 Inch Bore, 3.136 Inch Outside Dia. Steel, Hardened
Get it by Tuesday, Jun 17
€75.51 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 2 5/16" |
| Individually Packaged | Yes |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 18 |
| Outside Dia. | 3.136" |
| Pitch Dia. | 2.8794" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 3 1/4" |
| Storage Dimension Width | 3 1/4" |
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 7.98 |
| Ship width (cm) | 7.98 |
| Product | Model | Price | |
|---|---|---|---|
 |
40BS9HT 1/2 | €37.53 | |
 |
40BS10HT 1/2 | €39.67 | |
 |
40BS11HT 1/2 | €41.83 | |
 |
40BS12HT 1/2 | €46.36 | |
 |
40BS13HT 1/2 | €48.26 | |
 |
40BS14HT 1/2 | €51.09 | |
 |
40BS15HT 1/2 | €54.90 |
