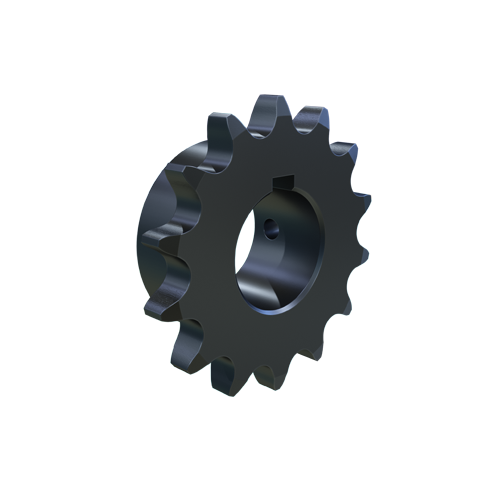

| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 1 11/16" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 7/8" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 14 |
| Outside Dia. | 2.491" |
| Pitch Dia. | 2.247" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 2 9/16" |
| Storage Dimension Width | 2 9/16" |
| Weight | 0.4 lbs. |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 6.32 |
| Ship width (cm) | 6.32 |
| Product | Model | Price | |
|---|---|---|---|
 |
40BS9 1/2 | €24.69 | |
 |
40BS10 1/2 | €25.59 | |
 |
40BS11 1/2 | €26.76 | |
 |
40BS12 1/2 | €29.31 | |
 |
40BS13 1/2 | €30.68 | |
 |
40BS14 1/2 | €32.29 | |
 |
40BS15 1/2 | €34.84 |
