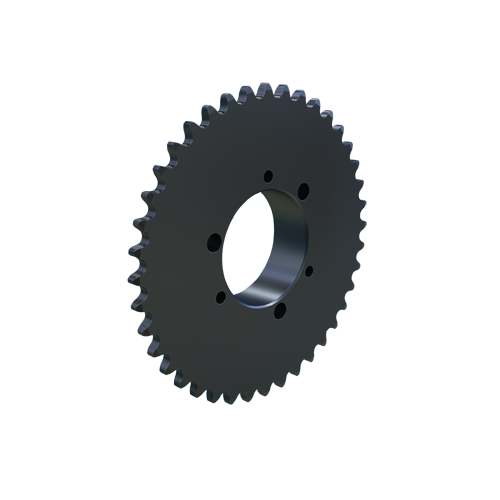

MARTIN SPROCKET 35SH40 Sprocket, QD, 35 Chain, 40 Teeth, 4.780 Inch Pitch Dia., 4.990 Inch O.D., Steel
Get it by Tuesday, Jun 17
€98.23 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SH |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 3/4" |
| Individually Packaged | Yes |
| Length Through Bore | 0.812" |
| Material | Steel |
| Max. Bore Size | 1 11/16" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 40 |
| Outside Dia. | 4.99" |
| Pitch Dia. | 4.7796" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 13/16" |
| Storage Dimension Length | 5 1/16" |
| Storage Dimension Width | 5 1/16" |
| Weight | 1.3 lbs. |
| Ship weight (kg) | 0.53 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 12.67 |
| Ship width (cm) | 12.67 |
