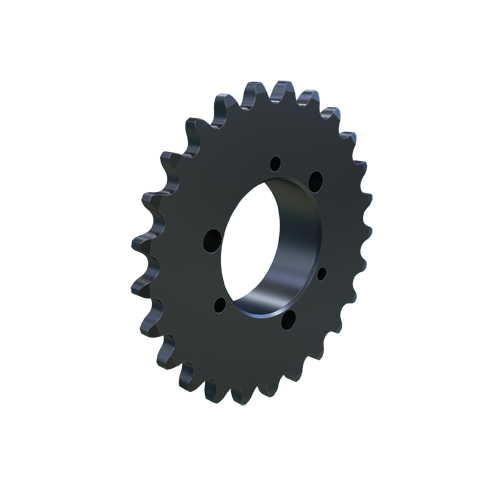

MARTIN SPROCKET 35JA25 Sprocket, 35 Chain, 25 Teeth, 2.992 Inch Pitch Dia., 3.193 Inch O.D., Steel
Get it by Tuesday, Jun 17
€85.31 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | JA |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 2" |
| Individually Packaged | Yes |
| Length Through Bore | 14/25" |
| Material | Steel |
| Max. Bore Size | 1 1/4" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 25 |
| Outside Dia. | 3.193" |
| Pitch Dia. | 2.992" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 3 1/2" |
| Storage Dimension Width | 3 1/2" |
| Weight | 0.5 lbs. |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 8.1 |
