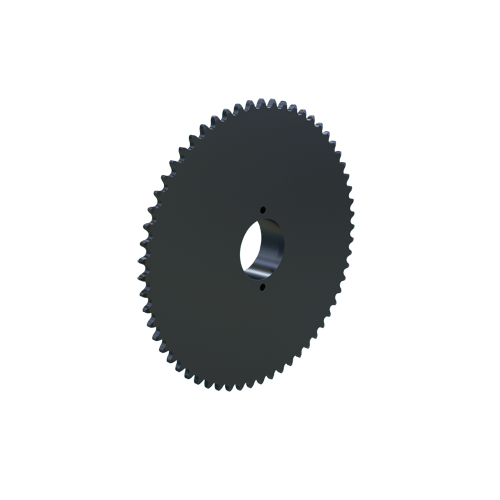

MARTIN SPROCKET 35H60 Sprocket, MST, 35 Chain, 60 Teeth, 7.165 Inch Pitch Dia., 7.380 Inch O.D., Steel
Get it by Wednesday, Jun 18
€194.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | H |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Welded |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | No |
| Length Through Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 60 |
| Outside Dia. | 7.38" |
| Pitch Dia. | 7.1652" |
| Single Strand Tooth Thickness | 0.154" |
| Storage Dimension Height | 22/25" |
| Storage Dimension Length | 7.38" |
| Storage Dimension Width | 7.38" |
| Ship weight (kg) | 1.05 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 18.75 |
| Ship width (cm) | 18.75 |
